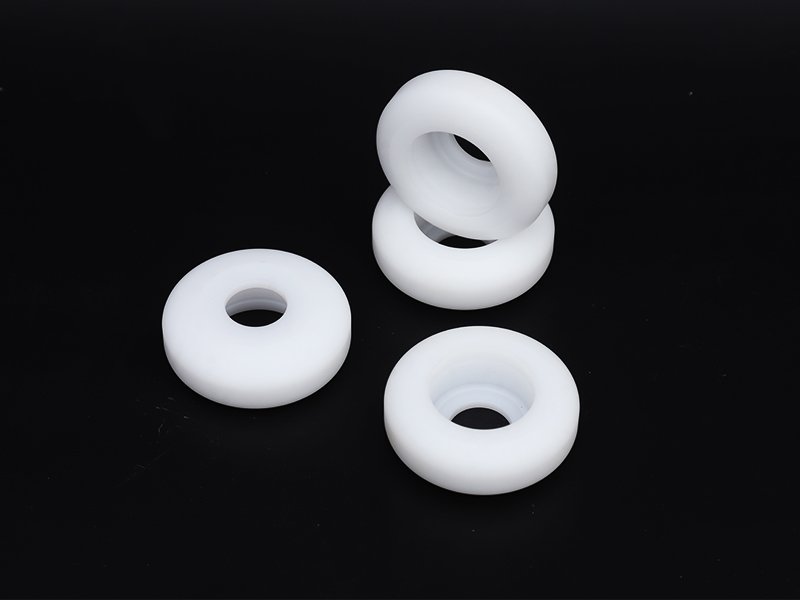

CNC Machining in UHMWPE Material
At Jiangzhi, we specialize in UHMWPE machining, offering precision CNC services for ultra-high molecular weight polyethylene (UHMW). Whether you’re working with prototypes or low-volume production, our team ensures tight tolerances, clean finishes, and consistent quality.
Machining UHMW polyethylene is a reliable solution for producing parts that demand extreme impact strength, abrasion resistance, and low-friction performance. Although UHMW is known for its toughness and ductility, which can make CNC milling and turning more challenging, UHMW plastic machining remains highly effective when done with proper tooling and expertise. Its durability and clean machinability make it a popular choice for wear pads, bushings, guides, and sliding components across various demanding industries. We handle tight tolerances, thick or thin wall sections, and custom requirements for your UHMW machined parts, helping you meet your performance and budget goals.
UHMW CNC Machining Capabilities & Options
The following CNC UHMW machining capabilities options are provided as a general reference and can be customized according to part requirements.
| Parameter | Recommended Range |
|---|---|
| Max Part Size | 800×500×300 mm |
| Color Options | Natural white / Black |
| Surface Finishes | As-machined / Matte machined |
| Tolerances | ±0.20–0.50 mm |
| Cost | ⭐⭐⭐⭐☆ |
CNC UHMW Machinability
| Tensile Strength, Yield (MPa) | Elongation at Break | Hardness | Impact Strength | Heat Deflection | Heat Deflection Temperature | Melting Point |
|---|---|---|---|---|---|---|
| 20–30 MPa | 300–600% | R60–R70 | >150 J/m | 80–100°C | 60–80°C | 130–135°C |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Related Process
Advantages & Disadvantages of CNC UHMWPE Machining
Advantages
- Exceptional abrasion resistance – long wear life in demanding environments
- Low friction surface – excellent for sliding and guide components
- Good chemical resistance – handles harsh cleaning agents and solvents
- Lightweight and durable – maintains strength without adding bulk
- Food-safe options – suitable for FDA-compliant applications
Disadvantages
- Difficult to machine – may deform or string without proper tooling
- Poor dimensional stability – higher thermal expansion than other plastics
- Surface finish limitations – rougher finish compared to harder plastics
- Not ideal for high-precision micro features
Common UHMWPE CNC Parts Surface Treatment
Jiangzhi CNC UHMW Machined Parts Are Guaranteed
Yes. UHMW plastic machining is ideal for making durable, low-friction parts. It’s perfect for tough environments like conveyors and marine use.
Both milling UHMW and turning UHMW require sharp tools and slower speeds due to its low stiffness and high slipperiness — but they produce excellent results when done right.
Machined UHMWPE offers great wear resistance, self-lubrication, and impact strength. It's a go-to for machining UHMW polyethylene in both industrial and food-grade applications.
Yes. We handle detailed UHMW designs and offer fast quotes after reviewing your CAD. Accurate pricing depends on design complexity and UHMW plastic machining requirements.
We guarantee satisfaction. If your parts don’t fit or perform, we’ll remake them—simple and hassle-free.
