CNC Machining in PP Material
At Jiangzhi, we offer expert CNC machining polypropylene parts tailored to your design and functional requirements. Whether you’re creating early-stage CNC PP prototypes or ready for batch production, our advanced CNC technology ensures accuracy, consistency, and speed.
Polypropylene is a lightweight, tough thermoplastic that offers excellent chemical resistance, making it ideal for industries like medical, chemical processing, food handling, and consumer goods. Our experience with milling polypropylene and turning complex CNC polypropylene shapes helps customers reduce development cycles and improve product reliability. From raw material sourcing to tight-tolerance finishing, we deliver end-to-end PP CNC machining solutions.
PP CNC Machining Capabilities & Options
The following CNC PP machining capabilities options are provided as a general reference and can be customized according to part requirements.
| Parameter | Recommended Range |
|---|---|
| Max Part Size | 800×500×300 mm |
| Color Options | Pantone / Sample / Custom colors |
| Surface Finishes | As-machined / Matte machined / Light sanding |
| Tolerances | ±0.10–0.20 mm |
| Cost | ⭐⭐☆☆☆ |
Machining Polypropylene Properties
| Tensile Strength, Yield (MPa) | Elongation at Break | Hardness | Impact Strength | Heat Deflection | Heat Deflection Temperature | Melting Point |
|---|---|---|---|---|---|---|
| 30–40MPa | 200–600% | R80–100 | 30–100J/m | 55°C | 50–60°C | 160–170°C |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Related Process
Advantages & Disadvantages of PP CNC Machining
Advantages
- Chemically resistant – ideal for medical, lab, or chemical-use parts
- Lightweight & durable – great strength-to-weight ratio
- Low cost & widely available – suitable for prototypes and low-volume parts
- Hinge-capable fatigue resistance – perfect for living hinges or snap-fit designs
- Easy to mill – good machinability with proper tooling
Disadvantages
- Soft & ductile – may deform under high-speed cutting without care
- Lower dimensional stability – requires optimized fixturing and speeds
- Poor UV resistance – degrades with prolonged sun exposure
- Difficult to glue/paint – often needs mechanical fastening or specialized treatments
- Surface finish limitations – soft surface may not yield glossy finishes without post-processing
PP CNC Parts Surface Treatment
Mechanical polishing or light tumbling can remove machining marks and smooth surfaces, improving the tactile feel for visible or handled components. Polished surfaces can still appear slightly matte due to PP’s natural properties.
Laser marking can be used for part identification, logos, or assembly marks. Direct engraving works well for high-contrast markings without affecting the structural integrity.
For handles, covers, or parts requiring grip, sandblasting or mild surface texturing can create a matte or slightly rough finish that improves friction and hides machining marks. Intensity should be controlled to prevent dimensional distortion.
While not purely a surface finish, chemical treatments or bonding may be applied to PP parts to join components or seal surfaces, leveraging its chemical resistance.
PP’s low surface energy makes paint adhesion difficult. To improve coating results, surface pre-treatment such as flame treatment, plasma treatment, or a suitable primer is recommended. UV coatings or protective coatings can also be applied for functional or aesthetic purposes.

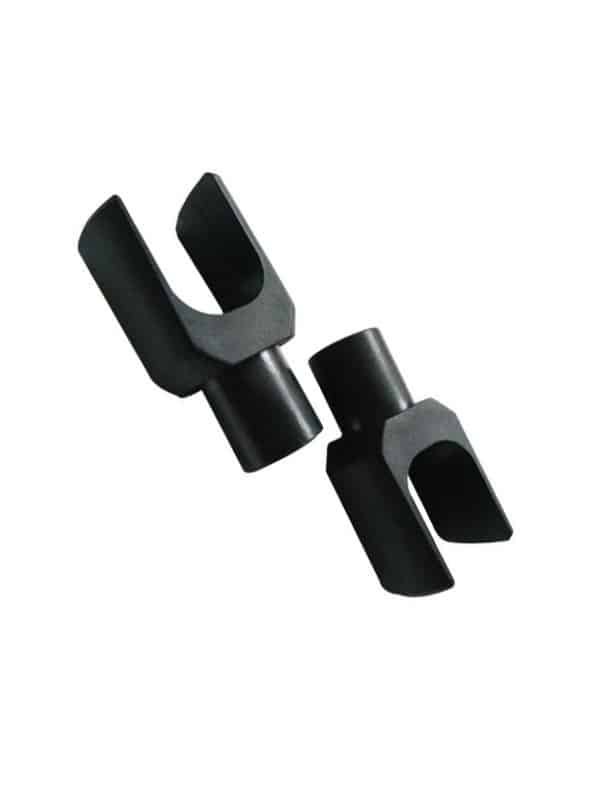

Jiangzhi CNC Polypropylene Machining Parts are Guaranteed
Yes. CNC polypropylene is machinable with the right tools and speeds. It’s ideal for flexible, chemically resistant parts.
Absolutely. With careful design, milling polypropylene can produce thin sections or living hinges. We’ll help review and optimize your files.
CNC PP is used in medical, lab, food handling, chemical processing, and more—anywhere chemical resistance and toughness are key.
Since PP is hard to glue, mechanical fastening or ultrasonic welding is recommended. We offer basic assembly support.
Yes, rough quotes are possible. For accurate pricing on PP CNC machining, we’ll need your CAD or 2D drawing.
