What is Polypropylene Injection Molding?
Our injection molding polypropylene process ensures cost-effective production with high durability and chemical resistance, utilizing advanced molding technology to create lightweight, impact-resistant components.

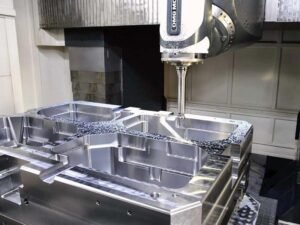

- Mold Design: Precision-engineered molds ensure high accuracy and repeatability.
- Processing: PP moulding melts polypropylene resin at optimal temps, injecting it into custom molds.
- Cooling & Solidification: Controlled cooling enhances structural integrity and maintains flexibility.
- Post-Processing: Additional treatments such as surface texturing or printing improve functionality.
With expertise in mold fabrication, material selection, and process optimization, we provide scalable injection moulding PP solutions for industries requiring lightweight, flexible, and chemically resistant pp molding components.
Injection Molding PP Parameters Table
| Parameter | Recommended Range |
|---|---|
| Wall Thickness | 0.8mm - 4.5mm |
| Maximum Part Size | 1800mm x 1200mm x 800mm |
| Minimum Feature Size | 0.3mm - 1.08mm |
| Tolerances | ±0.03mm - ±0.15mm |
PP Material Propertie
Polypropylene molding is a versatile thermoplastic process known for its excellent chemical resistance, low density, and flexibility. Its semi-crystalline structure provides durability while maintaining lightweight characteristics, making it ideal for a variety of industries. Key Material Properties:
- Excellent chemical resistance – withstands exposure to acids, bases, and solvents.
- Lightweight & durable – maintains strength while reducing overall weight.
- Good impact resistance – flexible yet tough under mechanical stress.
- Moisture resistance – does not absorb water, ensuring stability in humid environments.
| Property | Density | Tensile Strength | Flexural Strength | Impact Strength (Unnotched) | Heat Deflection Temp (0.45 MPa) |
|---|---|---|---|---|---|
| Value/Description | 0.89 - 0.91g/cm³ | 25 - 40 MPa | 30 - 55 MPa | 2 - 10 kJ/m² | 80 - 110℃ |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Advantages & Disadvantages of PP Injection Moulding
Polypropylene (PP) injection moulding is a popular choice for manufacturers seeking a balance of strength, flexibility, and chemical resistance. However, while it offers many advantages, it also has limitations that need to be considered. Exploring the pros and cons of PP injection moulding service can help you determine whether it’s the right material for your product needs.
Advantages
- Low cost & high efficiency – affordable production with fast cycle times.
- Excellent chemical resistance – withstands exposure to harsh chemicals.
- Flexible & impact-resistant – retains shape without breaking under stress.
- Moisture & corrosion resistance – ideal for humid or wet environments.
Disadvantages
- Lower heat resistance – may deform under high temperatures.
- Limited UV resistance – requires stabilization for outdoor applications.
- Lower stiffness compared to engineering plastics – may not be suitable for structural applications.
Applications of Injection Molding Polypropylene
Automotive Industry
- Interior trim panels
- Battery casings
- Fluid reservoirs
- Bumper reinforcements
Packaging Industry
- Food containers
- Caps and closures
- Cosmetic packaging
- Pharmaceutical bottles
Consumer Goods
- Household storage containers
- Toys and baby products
- Reusable water bottles
- Garden equipment
Medical Devices
- Disposable syringes
- Medical tubing
- Pill dispensers
- Sterile packaging
Jiangzhi PP Injection Molding Parts are Guaranteed
100% satisfaction: Precision-engineered PP injection moulding components with superior flexibility, chemical resistance, and durability – your vision, perfected in Polypropylene.
- PP Homopolymer: High stiffness, good tensile strength, best for rigid applications (e.g., containers, automotive parts).
- PP Copolymer: Better impact resistance, flexibility, and cold temperature performance, commonly used in medical and packaging applications.
- Filled PP (e.g., glass-filled, talc-filled): Increased stiffness and strength, used in high-performance applications.
- High shrinkage rate – PP shrinks significantly when cooling, which can affect dimensional accuracy.
- Warping and deformation – Uneven cooling can cause parts to warp or distort.
- Weld lines – Visible weld lines may appear where molten flows meet inside the mold, affecting strength.
- Poor adhesion – PP has low surface energy, making it difficult to bond with adhesives or coatings.
- Sensitivity to oxidation – PP degrades under prolonged exposure to UV and high temperatures.
- Melt temperature: Typically between 220°C and 280°C (avoid exceeding 280°C to prevent degradation).
- Mold temperature: Ranges from 20°C to 80°C, with 50°C being the most common setting.
- Injection pressure: Usually 50 MPa to 150 MPa to ensure complete mold filling.
- Cooling time: Varies based on part thickness, typically between 10 and 60 seconds.
Yes, recycled PP can be used, but:
- It may have lower mechanical properties compared to virgin PP.
- It may require additives to improve strength and processability.
- Contamination and degradation must be controlled to ensure consistent quality.
