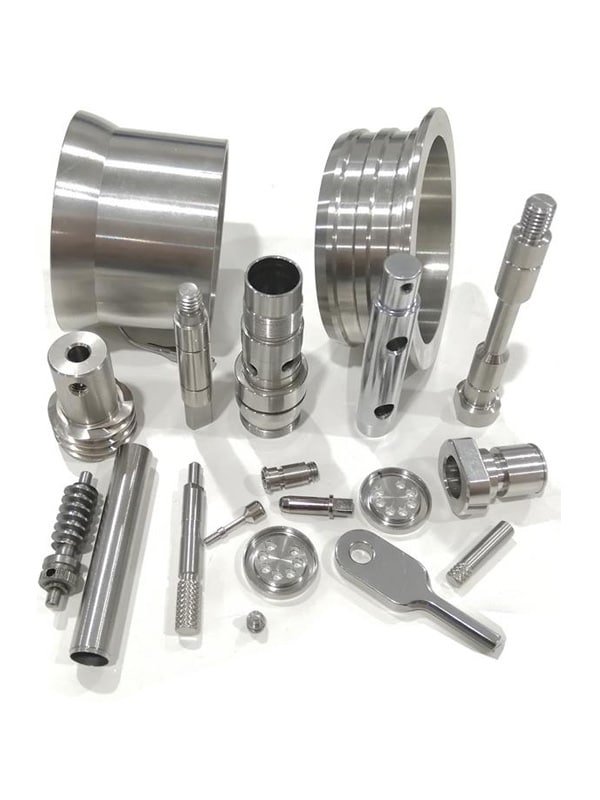

CNC Machining Stainless Steel Parts
At Jiangzhi, we specialize in CNC machining stainless steel parts using advanced multi-axis machining centers. Whether you need CNC turning, CNC milling stainless steel, or custom SS machining, our experienced team ensures tight tolerances, smooth finishes, and reliable mechanical performance—based on your 2D/3D drawings or CAD models. We support a wide range of SS grades, including 304, 316, 303, 17-4PH, and 416. These parts are ideal for high-strength, corrosion-resistant applications in aerospace shafts, housings, medical implants, surgical tools, automotive brackets, and industrial equipment. From feasibility review to final inspection, our CNC stainless steel service ensures quality, precision, and consistency for every order. Stainless Steel CNC Machining Capabilities & Options The following CNC SS machining capabilities options are provided as a general reference and can be customized according to part requirements.| Parameter | Recommended Range |
|---|---|
| Max Part Size | 1200×800×400 mm |
| Color Options | Natural |
| Surface Finishes | As-machined / Brushed / Polished / Bead blasted / Passivated |
| Tolerances | ±0.02–0.05 mm |
| Cost | ⭐⭐⭐⭐☆ |
Stainless Steel for CNC Machining
Stainless steel is known for its strength, corrosion resistance, and heat resistance—ideal for parts that require durability and longevity. While harder to machine than aluminum, it produces robust, long-life components. Common Grades We Machine::
- 304 – General-purpose stainless, strong and corrosion-resistant, widely used
- 316 – Marine-grade SS with superior chemical and corrosion resistance
- 303 – Easier-to-machine stainless with good strength and wear resistance
- 17-4PH – Precipitation-hardened SS with excellent strength and hardness
- 416 – Free-machining SS used in precision components requiring high tolerances
| Tensile Strength | Hardness (HB) | Elongation at Break | Thermal Conductivity | Corrosion Resistance | Melting Point | CNC Machining Notes |
|---|---|---|---|---|---|---|
| 480–1100 MPa | 140–200 | 10–45% | 15–25 W/m·K | Excellent | 1370–1450°C | Harder to machine; use low speed and coolant |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Advantages & Disadvantages of CNC Stainless Steel Machining
CNC stainless steel offers excellent strength and corrosion resistance, but it is harder to machine than other metals. Careful tool selection, optimized spindle speeds, and proper coolant are essential to maintain precision and reduce tool wear.
Advantages
- High strength and wear resistance – ideal for load-bearing parts
- Excellent corrosion resistance – suitable for marine, medical, and chemical applications
- High heat tolerance – performs well in extreme environments
- Clean, professional finish – functional and aesthetic Disadvantages
Disadvantages
- Harder to machine – increases tool wear and processing time
- Higher cost – material and machining
- May require specialized tooling – especially for high-precision parts
- Risk of work hardening – requires optimized parameters
Common Stainless Steel CNC Parts Surface Treatment
Stainless steel is widely used for CNC parts such as mechanical components, housings, fasteners, brackets, and medical or food-grade parts. It has high strength, corrosion resistance, and durability, making it suitable for both functional and decorative applications.
Polishing / Buffing
Mechanical, electropolishing, or manual buffing can produce a smooth, reflective surface for visible or decorative parts. Polished surfaces enhance aesthetics, reduce friction, and improve corrosion resistance.
Passivation
Passivation removes free iron from the surface, enhancing corrosion resistance. This is commonly used for parts in harsh environments, medical, or food-contact applications.
Sandblasting / Bead Blasting
Used to create matte or textured surfaces that hide machining marks and improve grip. Sandblasted finishes can also serve as a base for coatings or painting.
Painting / Powder Coating
Stainless steel can be painted or powder-coated to add color, UV protection, or a durable finish. Pre-treatment like sandblasting ensures better coating adhesion.
Electroplating / Metal Plating
Electroplating with nickel, chrome, or other metals can provide decorative finishes or additional wear resistance. Proper surface preparation is essential for adhesion.
Laser Engraving / Etching
Used for logos, serial numbers, or decorative patterns. Laser engraving provides precise, permanent markings without affecting corrosion resistance.
CNC Deburring / Edge Finishing
Edges and corners can be deburred or chamfered to improve part fit, reduce sharp edges, and prepare surfaces for subsequent coatings.
Jiangzhi CNC Stainless Steel Parts Are Guaranteed
100% satisfaction: Expertly machined stainless steel CNC parts with tight tolerances, reliable performance, and smooth finishes — delivered fast and consistently.
Why is stainless steel used for CNC machining?
Because of its strength, temperature resistance, and excellent corrosion properties, CNC stainless steel machining is ideal for critical or long-life parts.
What’s the difference between 304 and 316 stainless in machining?
Is stainless steel difficult to machine?
Yes, compared to aluminum. It requires slower feeds/speeds, proper tooling, and optimized strategies to avoid work hardening.
Can you machine tight tolerances on stainless steel parts?
Absolutely. Our SS CNC service regularly achieves ±0.01 mm tolerances for high-performance applications.
Do you provide design support for stainless steel machining?
Yes. Our engineers review your drawings to ensure your CNC stainless parts are optimized for performance, cost, and manufacturability.
