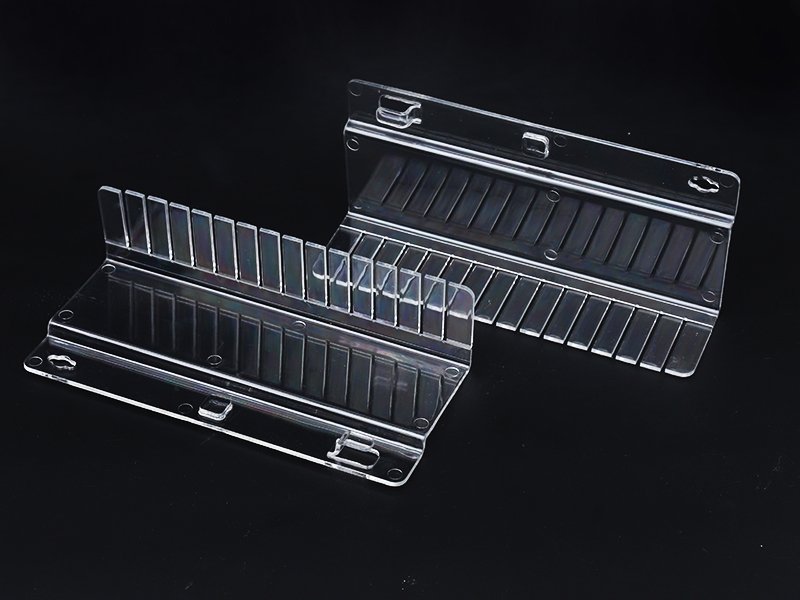

What is Injection Molding PMMA?
Our injection moluding acrylic process ensures high optical clarity, excellent weather resistance, and superior surface quality. Using advanced molding technology, we produce acrylic plastic molding components with outstanding durability and scratch resistance.
- Mold Design: Precision-engineered molds optimize transparency and minimize defects.
- Processing: PMMA injection molding heats and injects acrylic resin into custom molds.
- Cooling & Solidification: Controlled cooling minimizes internal stress and optimizes PMMA’s optical clarity.
- Post-Processing: Treatments like polishing, UV coating, or painting enhance the surface and performance.
With expertise in custom acrylic molding, material selection, and process optimization, we provide scalable injection mold acrylic solutions for industries requiring clarity, strength, and weather resistance.
PMMA Injection Molding Capabilities & Options
Typical parameters for PMMA injection-molded parts we manufacture are shown below for reference. Values can be adjusted based on part geometry, tolerance requirements, surface expectations, and end-use application.
| Parameter | Recommended Range |
|---|---|
| Max Part Size | 2500mm * 2000mm（98 inch * 78 inch） |
| Color Options | Clear / Transparent colors / Custom colors |
| Surface Finishes | SPI A1 / A2 / B1 |
| Tolerances | ±0.05–0.10 mm |
| Injection Molding Cost | ⭐⭐⭐☆☆ |
PMMA Material Properties
Acrylic injection molding is a preferred process for manufacturing transparent and impact-resistant components. Its high optical clarity, UV resistance, and durability make it ideal for applications requiring injection molding acrylic transparent parts with long-lasting performance.
Key Material Properties:
- Superior transparency – Over 90% light transmittance, excellent for optical applications.
- High impact resistance – Tougher than glass, reducing breakage risks.
- UV and weather resistance – Maintains clarity and durability under prolonged sunlight exposure.
- Scratch resistance – Hard surface withstands abrasion better than many plastics.
| Property | Density | Tensile Strength | Flexural Strength | Impact Strength (Unnotched) | Heat Deflection Temp (0.45 MPa) |
|---|---|---|---|---|---|
| Value/Description | 1.17 - 1.20g/cm³ | 50 - 78 MPa | 90 - 130 MPa | 2 - 5 kJ/m² | 90 - 105℃ |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Related Process
Advantages & Disadvantages of PMMA Injection Molding
PMMA (Polymethyl Methacrylate) injection molding is widely valued for its excellent clarity. While PMMA offers impressive visual and performance benefits, it also has some processing and durability limitations. Understanding the advantages and disadvantages of PMMA injection molding service can help you determine whether it’s the ideal fit for your application.
Advantages
- High optical clarity – Ideal for lenses, displays, and lighting.
- Weather & UV resistance – Does not yellow or degrade easily.
- Rigid & durable – Maintains shape with excellent surface hardness.
- Lightweight alternative to glass – Stronger and more impact-resistant.
Disadvantages
- Brittleness – More prone to cracking under excessive force.
- Lower heat resistance – Softens at high temperatures.
- Sensitive to stress cracking – Requires careful processing and proper mold design.
Applications of Acrylic Injection Molding
PMMA is widely used across industries due to its clarity, weather resistance, and durability. As a Injection molding manufacturers our custom acrylic molding services provide high-quality, cost-effective solutions for various applications.
Automotive Industry
- Light covers & lenses
- Dashboard displays
- Interior trims
- Instrument panels
Lighting & Optical
- LED light diffusers
- Optical lenses
- Display panels
- Projection screens
Consumer Goods
- Protective screens
- Premium packaging
- High-end furniture
- Retail displays
Medical Devices

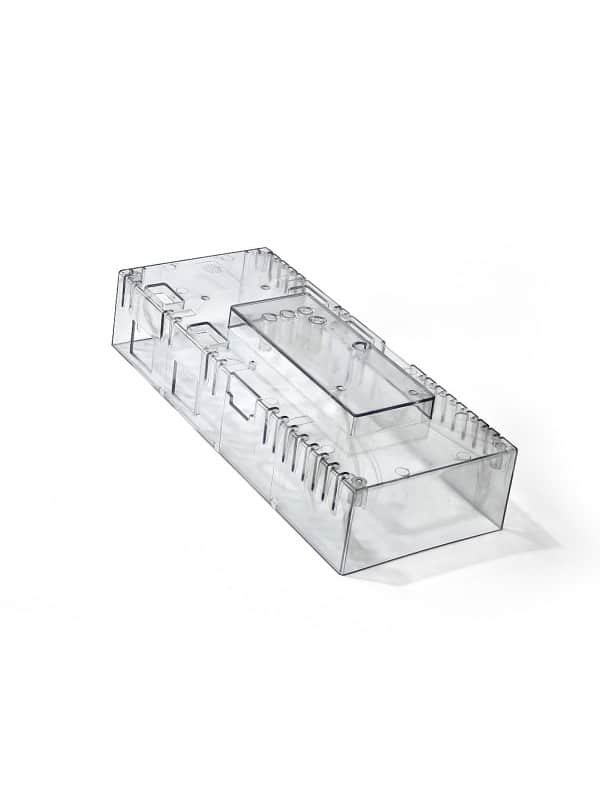

- Transparent medical housings
- Dental trays
- Surgical equipment covers
- Labware
Jiangzhi PMMA Injection Molding Parts are Guaranteed
If you want something super clear and scratch-resistant—like lenses or LED covers—PMMA (Acrylic) is your best bet. But if the product needs to be tough and impact-resistant—like car light covers or face shields—PC (Polycarbonate) is a better choice. So go with PMMA for clarity and looks, and PC when strength matters more.
Cracks usually happen because of too much internal stress, fast cooling, or exposure to certain chemicals like alcohol or cleaners. Also, sharp corners or thin walls in the design can make it worse. To avoid cracking, it helps to tweak the mold design, lower the injection pressure a bit, and maybe use a more chemical-resistant PMMA type.
Bubbles and flow marks often come from moisture in the material or injection settings not being quite right. Drying the PMMA properly before molding, using the right mold temperature, and adjusting the injection speed usually solves the problem. A good venting design in the mold also helps a lot.
Yes, you can use PMMA in two-shot molding, usually as the outer layer when you want a nice, transparent finish. It works well with materials like ABS or PC underneath, which add strength. Just make sure the materials bond well so the parts don’t separate.
Yes, as long as you’re using FDA-approved food-grade PMMA. It’s non-toxic, has no smell, and can handle heat pretty well—so it’s great for things like food containers, cups, and kitchen tools that need to look good and stay safe.
