CNC Machining in PTFE Material
We specialize in PTFE precision machining services and PTFE CNC machining parts, delivering high-quality custom PTFE parts and Teflon CNC machined components for prototypes and low-volume production. Our advanced equipment and optimized processes ensure machined PTFE parts meet tight tolerances with excellent surface finishes, including complex shapes and fine details.
Due to PTFE’s softness, high thermal expansion, and low thermal conductivity, machining PTFE presents unique challenges such as deformation and tool gumming/smearing. At Jiangzhi, we overcome these challenges through our expertise in CNC machining services. Utilizing specialized tools, precise cutting parameters, effective chip removal, and advanced cooling techniques, our PTFE CNC machining service consistently delivers reliable, high-quality custom Teflon parts and machined PTFE parts that meet stringent quality standards.
| Price | $$$ |
|---|---|
| Tolerances | ±0.02mm |
| Maximum Part Size | 800mm x 600mm x 250mm |
| Minimum Feature Size | Φ 0.5mm |
| Wall Thickness | 0.5mm |
| Lead Time | About 3-6 days |

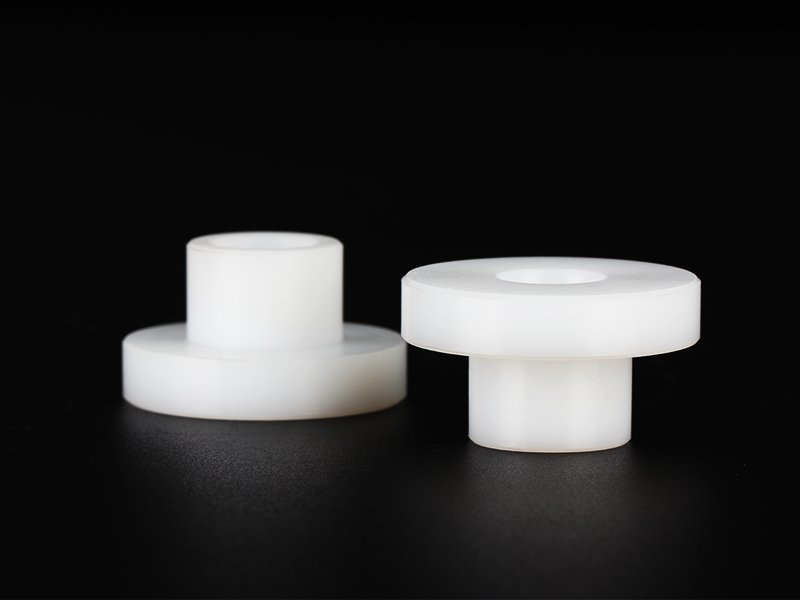

PTFE Machining Properties
PTFE (polytetrafluoroethylene), widely known as Teflon, is a high-performance fluoropolymer composed entirely of carbon and fluorine atoms. It offers outstanding thermal stability up to 260°C, exceptional chemical resistance, a very low friction coefficient, and excellent electrical insulation. These properties make PTFE ideal for extreme environments where durability and reliability are essential.
CNC machining PTFE takes full advantage of these material qualities to create custom components for chemical processing, electrical insulation, medical devices, and low-friction mechanical parts. Its combination of chemical inertness, thermal endurance, and wear resistance ensures long service life, even in highly demanding applications.
| Tensile Strength, Yield (MPa) | Elongation at Break | Hardness | Impact Strength | Heat Deflection | Heat Deflection Temperature | Melting Point |
|---|---|---|---|---|---|---|
| 9–30 MPa | 200–400% | R55–R65 | 100–160 J/m | 100–120°C | 80–100°C | 327°C |
- The above parameters represent the baseline performance of the materials. Actual application should be dynamically optimized based on specific working conditions.
Related Process
PTFE CNC Machining Advantages & Application
-
Custom PTFE Parts Advantages
- Excellent chemical resistance – withstands corrosive chemicals and solvents.
- Low friction and non-stick surface – ideal for sliding or sealing components.
- High thermal stability – suitable for a wide temperature range.
- Good machinability – machines cleanly with precision.
- Electrical insulation – great for electronic components.
-
Applications of PTFE Machined Parts
- Chemical Processing: Tank linings, valve seats, and pump components
- Food & Beverage: Non-stick surfaces, seals, and mixers
- Oil & Gas / Petrochemical: Pipe fittings, high-pressure seals, and valve linings
- Electronics & Electrical: Insulators, dielectric spacers, and connectors
- Medical & Pharmaceutical: Catheters, implantable parts, and sealing components
- Industrial Machinery: Bushings, bearings, wear plates, and slide plates
Surface Finishing Options for CNC Machined PTFE Parts
To enhance appearance and functionality, we provide custom surface finishing for your CNC PTFE parts. From smooth matte finishes to precision engraving and marking, our finishing services help improve durability, traceability, and aesthetic appeal to meet your exact requirements.
Standard finish with visible tool marks; suitable for functional prototypes and internal components.
Uses abrasive media to create a uniform matte or satin finish; also improves coating adhesion on plastic or metal surfaces.
Adds logos, text, or identification marks via silk screen or pad printing, ideal for branding or part tracking.
Removes machining marks and evens out surface texture; ideal for prototypes and parts where appearance is not critical.
Painting and powder coating provide colorful, durable, and corrosion-resistant finishes.
Deposits metal layers such as nickel or chrome on parts, improving wear resistance, conductivity, and aesthetic quality.
Produces a smooth, glossy finish; commonly applied to plastics like PC or PMMA for enhanced clarity and premium look.
Chemical treatment for ferrous metals, creating a dark, corrosion-resistant surface with minimal thickness.
Electrochemical process for aluminum that enhances corrosion and wear resistance, with options for colored finishes.
Jiangzhi CNC Ptfe Machined Parts are Guaranteed
Yes, PTFE offers excellent chemical resistance, low friction, and thermal stability, making it ideal for many precision parts.
PTFE excels in chemical inertness and low friction but is softer and less mechanically strong than PVC or ABS.
Yes, with optimized design and careful fixturing, complex PTFE parts can be machined precisely.
Absolutely, our engineers will review your CAD or drawing and suggest design improvements for better machinability and performance.
We offer rework or replacement to ensure your parts meet all your quality and performance expectations—hassle-free.
