Silicone overmolding transforms the way manufacturers create durable, ergonomic, and multifunctional components. By seamlessly bonding flexible silicone to rigid substrates, the silicone overmolding process delivers parts that combine strength with comfort, precision with versatility. In this guide, we will learn everything about the silicone overmolding service.

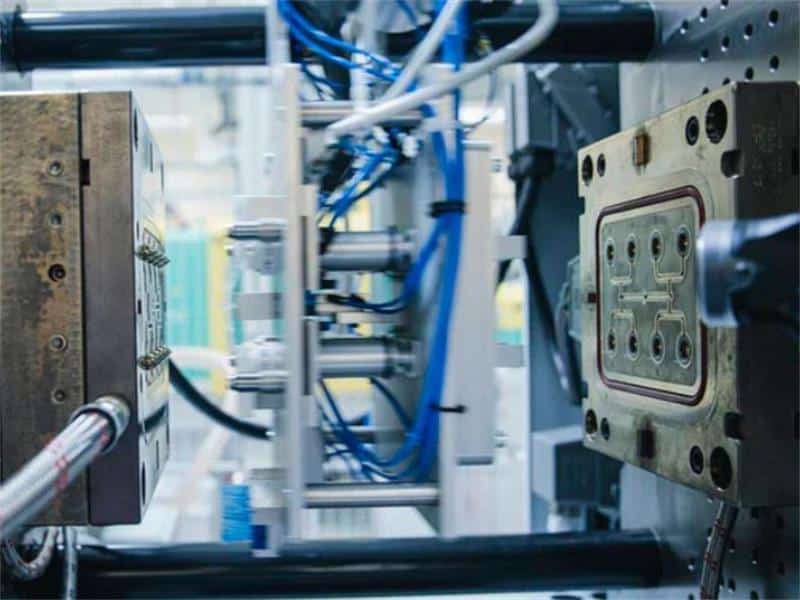

What Is Silicone Overmolding?
Silicone overmolding is a manufacturing process where flexible silicone is molded onto a rigid substrate, such as plastic or metal, in a single step. This technique combines the soft, elastic properties of silicone with the strength of the base material to create durable, multi-material components. It ensures a seamless bond, enhancing product functionality and aesthetics in one efficient molding cycle. Silicone overmolding is used in scenarios requiring components with both flexibility and durability.
Materials and Structures for Silicone Overmolding
Silicone overmolding is a process that combines two materials with distinct textures—flexible silicone and a rigid substrate—in a single molding cycle to create seamless, multi-material components.
Primarily liquid silicone rubber (LSR) or high-consistency rubber (HCR), which can be customized with additives for properties like biocompatibility, UV resistance, or specific colors.
Applicable Scenarios
Silicone overmolding is ideal for applications requiring a combination of durability and flexibility in a single component. Common uses include:
Medical Devices: Grips for surgical tools or wearable health monitors.
Consumer Electronics: Protective casings for devices like earbuds or remote controls.
Automotive Components: Seals or buttons for dashboards and interiors.
Wearables: Straps for smartwatches or fitness trackers.
Industrial Tools: Non-slip handles.
Cryogenic Deflashing: A Key Post-Processing Step
After silicone overmolding, excess material, or flash, often forms at mold parting lines. Cryogenic deflashing is a critical post-processing step to remove this flash while preserving part integrity. In this process, parts are cooled to below their glass transition temperature (typically -50°F) using liquid nitrogen, making the flash brittle. Polycarbonate media is then blasted to remove the flash, delivering a smooth surface finish (Ra ≤0.8 μm). Compared to manual trimming, cryogenic deflashing is faster, more consistent, and better suited for complex geometries.
Advantages of Silicone Overmolding
The integration of silicone rubber with rigid substrates through overmolding offers multiple benefits:
Enhanced Functionality: Silicone provides excellent grip, cushioning, insulation, and sealing properties, improving user experience and product performance.
Design Flexibility: The process supports complex shapes, multi-material integration, and custom textures or colors, enabling innovative product designs.
Durability: Silicone’s resistance to heat, chemicals, and environmental factors extends the lifespan of components.
Aesthetic Appeal: Overmolding allows for multi-color designs and varied surface finishes, boosting product appeal.
Manufacturing Efficiency: Combining parts into a single molded component reduces assembly steps and overall production costs.
Key Design and Manufacturing Considerations
Designing for silicone overmolding requires careful attention to several factors to ensure quality and performance. To explore these principles in detail, check out our comprehensive overmolding design guide.
1. Mold Fit Precision
Molds must be precisely engineered to accommodate the different shrinkage rates of silicone and the rigid substrate (e.g., thermoplastics or metals). Ensure accurate alignment between the substrate and silicone mold cavities to prevent flash or incomplete filling. Use precise clamping mechanisms to maintain consistent pressure.
2. Multi-Material Interface Strength Control
Achieve strong bonding through mechanical interlocking or chemical bonding. Select substrates and silicones with compatible surface energies. And, optimize injection pressure, temperature, and curing time to ensure a robust interface.
3. Dimensional Tolerances
Maintain strict dimensional tolerances to ensure proper fit and function. Account for silicone’s higher shrinkage rate (2–3% for LSR) compared to plastics (<1%) in mold design. Use simulation software to predict and adjust for dimensional changes.
4. Deburring Strategies
Employ cryogenic deflashing, laser trimming, or manual trimming for delicate components. Automated deflashing is preferred for high-volume production.
5. Color Matching Requirements
Use pre-colored silicone compounds or masterbatches to achieve uniform color. Ensure pigments are compatible with silicone’s curing process to avoid fading or discoloration.
6. Surface Texture Requirements
Specify textures (e.g., matte, glossy, or micro-textured) in mold design to enhance grip, aesthetics, or tactile feel. Polished mold surfaces yield glossy finishes, while EDM (Electrical Discharge Machining) textures create matte or patterned surfaces.
Conclusion
Silicone overmolding is a game-changer for creating multifunctional, durable, and visually appealing components. Ready to start your product design? Whether you’re designing medical devices, automotive seals, or consumer electronics, connect with Jiangzhi to explore the silicone overmolding process. Jiangzhi supplies one-stop custom silicone overmolding solutions for your project.
