Injection moulding is a popular process of modern manufacturing, transforming molten plastic into precise, high-quality parts for industries ranging. This process involves injecting molten plastic into a mould under high pressure (500–2000 bar), cooling it for 15–120 seconds, and ejecting the solidified part. Its versatility powers applications like car dashboards, medical syringes, consumer electronics housings, and packaging caps, making it a go-to solution for mass production. The benefits of injection moulding—such as precision, cost-effectiveness, and scalability—drive its popularity among manufacturering. This article explores the advantages of injection moulding.
1. High Production Efficiency and Speed
In injection molding, plastic pellets are heated until molten, then injected into a mold. The cycle time—from injection to cooling and ejection—typically ranges from 15 to 120 seconds depending on part size and complexity. Moreover, the use of multi-cavity molds enables the simultaneous production of multiple identical parts in one cycle, significantly increasing output without sacrificing quality. Compared to other manufacturing methods such as CNC machining or 3D printing, injection molding offers a much faster throughput. Jiangzhi supply injection molding solutions to meet large-scale production demands efficiently and reduce lead times.
2. Low Cost Per Part for Large Volumes
While the initial cost to design and fabricate the mold can be high, the mold can be reused thousands to hundreds of thousands of times (aluminum molds last ~10,000 cycles, steel molds up to 100,000+ cycles). As production volume increases, the cost per part decreases significantly. The automation in the injection molding process also reduces labor costs, further lowering overall expenses.
3. Excellent Repeatability and Consistency
Injection molds are manufactured using high-precision CNC machining, electrical discharge machining (EDM), and other advanced techniques to ensure tight tolerances and consistent dimensions. During injection molding, process parameters such as injection pressure, temperature, and cooling time are tightly controlled. The precision mold and controlled injection process ensure that each part produced is nearly identical in dimensions and quality.
4. Design Flexibility for Complex Geometries
The molten plastic’s excellent flow characteristics allow it to fill complex mold cavities, enabling the production of parts with intricate details, thin walls, undercuts, threads, and even living hinges. Mold designers can incorporate multiple features into a single mold, reducing the need for assembly and simplifying product design. This flexibility allows designers to create innovative and complex parts that would be difficult or costly with other manufacturing methods.
5. Minimal Post-Processing Required
Parts come out of the mold with smooth surfaces and accurate dimensions, often eliminating or reducing the need for secondary finishing like sanding, painting, or machining. Mold surfaces can be polished, textured, or patterned to achieve a variety of finishes directly on the part, from high gloss to matte or even complex textures. Additionally, colors and additives can be mixed into the plastic resin before injection, eliminating the need for painting or coating.
6. Wide Material Selection and Enhanced Strength
Injection molding supports a vast array of plastic materials, from commodity thermoplastics like polypropylene and polyethylene to engineering plastics such as polycarbonate, ABS, and nylon. Manufacturers can select materials based on specific requirements such as strength, flexibility, chemical resistance, or heat tolerance. Furthermore, materials can be compounded with additives like glass fibers, carbon fibers, or flame retardants to enhance mechanical properties and durability.
7. High Automation and Reduced Labor Costs
Injection molding machines are highly automated, with robotic systems handling tasks like mold closing, injection, cooling, and part ejection. This reduces human labor, minimizes errors, and increases production reliability and efficiency.
8. Environmentally Friendly with Reduced Waste
The process generates minimal waste since excess plastic from sprues and runners can often be recycled and reintroduced into the production cycle. Additionally, advances in machine design have led to more energy-efficient injection molding machines that consume less power during operation.
9. Integrated Color and Surface Finish Options
Advantage of injection moulding is the ability to integrate color and surface finishes directly into the molding process. Color masterbatches can be mixed with raw plastic pellets, allowing manufacturers to produce parts in virtually any color with uniform distribution and excellent durability. Surface textures and finishes can be created by treating the mold surfaces—ranging from glossy, matte, textured, to patterned finishes—without additional post-processing.
10. Scalability and Versatility Across Industries
Injection molding is suitable for both prototype runs and large-scale production. Most industries benefit from injection molding.

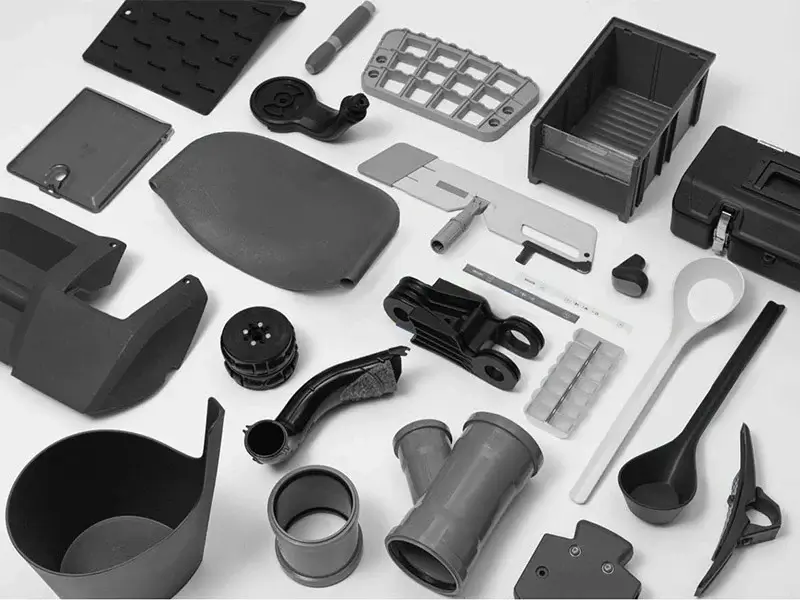

Here is a concise list of industries benefiting from injection molding with typical products:
Consumer Goods: household item casings, toys, home products
Packaging: caps, food containers, thin-wall packaging
Electronics and Electrical: device housings, plugs and sockets, switch panels
Automotive: dashboards, bumpers, headlight covers
Industrial: machinery parts, drive components, valve bodies
Aerospace: connectors, battery enclosures, aircraft interior parts
Medical: syringes, drug bottles, surgical instruments, diagnostic devices, prosthetics
Military and Defense: communication device housings, decoys, battery cases
11. Multi-Material and Multi-Color Capabilities
Injection molding is not limited to small or simple parts. With appropriate mold design and machine capability, it can produce large components with complex geometries.
Additionally, advanced techniques such as overmolding and insert molding allow combining multiple materials or colors in a single part. That will streamlines production, reduces assembly costs and creats products with superior performance and aesthetics. For example, a hard plastic base can be overmolded with a soft elastomeric grip, enhancing functionality and ergonomics without additional assembly.
Conclusion Benefits of Injection Moulding
The benefits of injection moulding are numerous and impactful, making it an indispensable manufacturing process across a wide range of industries. From high production efficiency and cost-effectiveness to exceptional precision, design flexibility, and environmental advantages, injection molding offers a comprehensive solution for producing high-quality plastic parts at scale. These strengths highlight why it stands out when considering the advantages and disadvantages of injection moulding.
As a professional injection molding service manufacturer, Jiangzhi leverages these injection molding advantages to deliver customized, high-quality solutions. Contact Jingzhi today to harness the benefits of plastic injection molding for your next project, ensuring precision and reliability.
