Thermoplastic Injection Molding: Process, Materials, Tools & Applications

Thermoplastic injection molding is enabling the production of high-precision plastic components. This versatile thermoplastic moulding process combines efficiency, flexibility, and precision, making it ideal for creating complex parts at scale. From car dashboards to medical syringes, thermoplastic injection molding delivers consistent quality and cost-effectiveness. This article explores the thermoplastic injection molding process, its materials, tools, applications, advantages, and how it differs from thermoset molding, concluding with answers to frequently asked questions.

What is Thermoplastic Injection Molding?

Thermoplastic injection molding is a manufacturing technique where thermoplastic polymers are heated to a molten state, injected into a mold, cooled to solidify, and ejected as a finished part. Unlike thermoset plastics, thermoplastics can be remelted and reshaped, offering flexibility and recyclability. The thermoplastic moulding process is highly automated, ensuring repeatability and precision for large-scale production.

Common Materials in Thermoplastic Injection Molding

The thermoplastic molding has a wide range of materials, each offering unique properties to suit specific applications. Common thermoplastics used in thermoplastic injection molding include:

• Polyethylene (PE): Known for its low cost and durability, PE is widely used in packaging, containers, and pipes due to its chemical resistance and flexibility.
• Polycarbonate (PC): With high transparency and impact resistance, PC is ideal for optical lenses, electronic housings, and safety equipment.
• Nylon (Polyamide, PA): Offering excellent wear resistance and heat tolerance, nylon is used in automotive parts and industrial components like gears.
• Acrylonitrile Butadiene Styrene (ABS): ABS combines toughness and ease of processing, making it popular for consumer goods like phone cases and appliance housings.
• Polyetheretherketone (PEEK): A high-performance thermoplastic, PEEK is used in aerospace and medical applications due to its exceptional heat resistance and strength.
• Polypropylene (PP): known for its good chemical resistance and fatigue strength. Its flexibility makes it suitable for parts that require bending or movement, such as food containers, medical devices, and household items.
• Acrylic (Polymethyl Methacrylate, PMMA): Acrylic is known for its optical clarity, scratch resistance, and weatherability. It is the top choice for light covers, signage, and automotive lenses.

Mold Types and Tools in Thermoplastic Injection Molding

The thermoplastic injection molding process relies on sophisticated equipment and precision molds to achieve consistent results. The injection molding machine and mold design are critical to producing high-quality parts efficiently.

Injection Molding Machine Components

1. Hopper and Barrel: The hopper feeds thermoplastic pellets into a heated barrel, where a screw melts and mixes the material.
2. Screw and Nozzle: The screw ensures uniform melting and injects the molten plastic into the mold through a nozzle.
3. Clamping Unit: This unit holds the mold closed under high pressure during injection, preventing defects like flash.
4. Mold and Ejector System: The mold shapes the part, while ejector pins release it after cooling.

Thermoplastic Injection Molding Mold Types

The thermoplastic molding process supports a variety of mold types, each tailored to specific production needs, part complexities, and volume requirements.

Single-Cavity Molds

Single-cavity molds have simpler design and lower manufacturing costs. They produce one part per cycle, making them ideal for low-volume production, prototyping, or parts requiring high precision.

Multi-Cavity Molds

Multi-cavity molds contain multiple identical cavities, allowing several same parts to be produced in a single cycle. This mold type is significantly increasing production efficiency and reducing per-unit costs.

Family Molds

Family molds produce multiple different parts in a single cycle, typically components of an assembly with varying shapes or sizes. In the thermoplastic moulding process, family molds reduce production time and streamline assembly.

Unscrewing Molds

Unscrewing molds are specialized for parts with internal or external threads, such as bottle caps, nuts, or medical syringe components. These molds incorporate rotating cores or mechanisms that unscrew the part during ejection, preserving thread integrity.

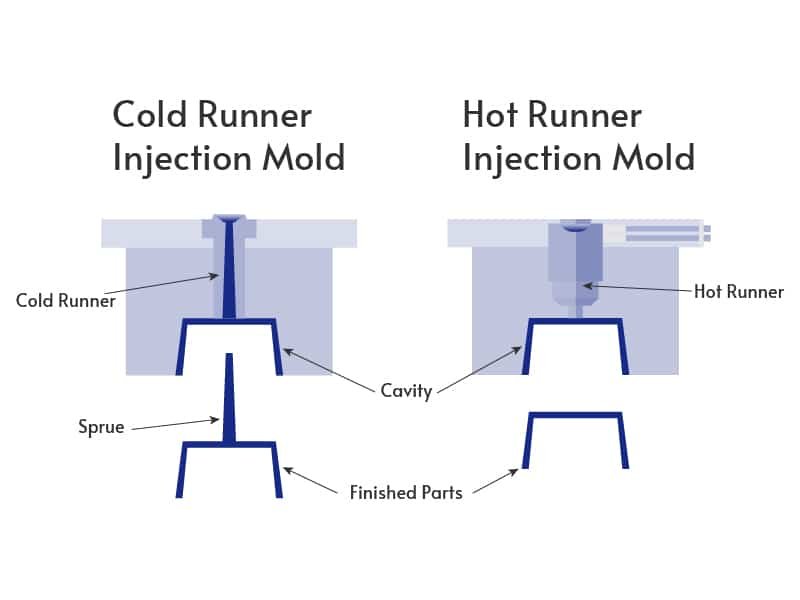

Hot Runner Molds

Hot runner molds feature heated channels that deliver molten plastic directly to the cavities, eliminating the need for runners (excess material channels) that solidify and require trimming.

Cold Runner Molds

In contrast, cold runner molds use unheated channels, resulting in solidified runners that are ejected with the part and typically trimmed off. These molds are simpler and less costly than hot runner molds, making them suitable for low- to medium-volume production or when frequent material or color changes are needed.

Stack Molds

Stack molds consist of multiple mold parting lines stacked vertically, effectively doubling or tripling production capacity within a single machine cycle.

Insert Molds

Insert molds integrate pre-placed components, such as metal inserts or other plastic parts, into the molded part during the thermoplastic injection molding process. Insert molding enhances part functionality and reduces assembly steps.

Two-Shot (Multi-Shot) Molds

Two-shot molds allow multiple materials or colors to be injected into a single mold in sequential steps, creating parts with integrated features, such as soft-grip handles on tools or multi-color consumer products.

Prototype Molds

Prototype molds are designed for testing and low-volume production, often made from less durable materials like aluminum to reduce costs. These molds are typically used in the early stages of the thermoplastic moulding process.

Advantages of Thermoplastic Injection Molding

Thermoplastic injection molding offers numerous advantages that make it a highly efficient and versatile manufacturing process.

One of its key benefits is the thermoplastics are recyclable. The ability to melt and reshape thermoplastic materials multiple times, which significantly reduces material waste and allows for the reprocessing of defective parts.

The process itself is highly automated and operates at high speeds, allowing for the rapid production of large volumes, which helps lower the cost per unit. And thermoplastics generally require lower processing temperatures, which reduces energy consumption.

Additionally, thermoplastic injection molding can produce parts with complex geometries and tight tolerances include intricate details or thin walls.

Applications of Thermoplastic Injection Molding

Thermoplastic injection molding is a popular manufacturing process among the numerous industries. The wide range of materials and precision in complex design make it a preferred manufacturing method in different products.

1. Automotive: Produces dashboards, bumpers, and connectors, leveraging materials like nylon and ABS for durability and lightweighting.
2. Medical: Manufactures syringes, surgical instruments, and device housings using biocompatible materials like PC and PEEK.
3. Consumer Goods: Creates phone cases, toys, and appliance housings with materials like ABS for aesthetic and functional versatility.
4. Aerospace: Supplies lightweight, heat-resistant components, such as PEEK brackets, for high-performance applications.
5. Packaging: Produces bottle caps, containers, and closures with PE and PP, ensuring precision and scalability.

Thermoset vs. Thermoplastic Injection Molding

While both thermoplastic injection molding and thermoset molding produce plastic parts, their material properties make the processes differ significantly:
