TPU is a material that marries rubber’s flexibility with plastic’s moldability. TPU injection molding transforming thermoplastic polyurethane (TPU) into durable, elastic components for industries ranging from automotive to medical. This guide explores TPU’s properties, advantages, molding process, design considerations, challenges, applications, and how to select the right injection moulding manufacturer.
What is TPU?
Thermoplastic polyurethane (TPU) is a versatile elastomer, bridging the gap between flexible rubber and rigid plastics. Composed of diisocyanates, polyols, and chain extenders, TPU combines elasticity with exceptional durability, making it ideal for TPU injection molding. Available in polyester-based (better chemical resistance) and polyether-based (superior flexibility) grades, TPU’s hardness ranges from 60 Shore A to 70 Shore D, catering to diverse applications. Its molecular structure enables it to soften when heated and solidify upon cooling, ensuring recyclability and processability in TPU molding.
TPU vs. TPR vs. TPE
Compared to thermoplastic rubber (TPR) and thermoplastic elastomers (TPE), TPR is a subset of TPE and it is softer and less durable, with inferior abrasion resistance. TPE, a broader category, offers flexibility but lacks TPU’s rigidity and chemical resistance.
Here is a table to show the differences simiply between three materials:
| Property | TPU | TPR | TPE |
|---|---|---|---|
| Hardness | 60A–70D | 20A–90A | 0A–100A |
| Abrasion Resistance | High | Moderate | Low–Moderate |
| Chemical Resistance | Excellent | Moderate | Moderate |
| Recyclability | High | Moderate | Moderate |

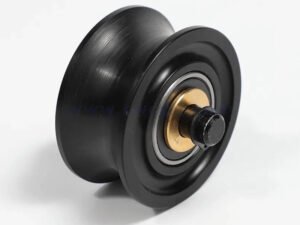

Why Choose TPU for Injection Molding? Characteristics and Applications
TPU injection molding is popular for its ability to produce flexible, durable parts that withstand rigorous conditions while offering design versatility. The comprehensive advantages of TPU make it a standout choice for TPU molding:
- Elasticity: TPU’s high elasticity allows it to stretch significantly and return to its original shape, mimicking rubber’s resilience, ideal for dynamic applications like seals or straps.
- Toughness: Renowned for durability, TPU resists wear and tear, even under harsh mechanical or environmental stress, ensuring longevity in industrial components.
- Chemical Resistance: TPU withstands a wide range of chemicals, including acids, oils, and hydrocarbons, making it suitable for automotive and medical environments.
- Weather Resistance: Resistant to UV light, ozone, and water, TPU maintains performance in outdoor settings, perfect for sporting goods or exterior automotive parts.
- Low-Temperature Flexibility: TPU retains flexibility at low temperatures, performing reliably in cold climates, unlike many plastics that become brittle.
- Abrasion Resistance: With exceptional resistance to friction, TPU excels in applications like footwear soles or conveyor belts, outlasting TPE or TPR.
- Hydrophobic Nature: TPU repels water absorption, ensuring stability in moist or wet environments, such as marine or medical applications.
- Electrical Insulation: TPU’s insulating properties make it a go-to for electrical and electronic components, like cable jackets.
- Biocompatibility: Certain TPU grades are biocompatible, meeting stringent standards for medical devices like catheters or dental appliances.
- Versatility: TPU’s adaptability supports diverse applications, from consumer electronics to industrial machinery, enabled by thermoplastic polyurethane injection molding.
- Recyclability: Up to 30% regrind can be reused, and 100% recycled TPU retains most properties, aligning with sustainable manufacturing.
- Color Retention: TPU maintains vibrant or transparent finishes, enhancing aesthetics in products like phone cases or watch bands.
TPU Injection Molding Process Overview
The TPU injection molding process is a precise, multi-stage operation that transforms TPU pellets into flexible, high-performance parts.
1. Material preparation: Where TPU’s hygroscopic nature necessitates thorough drying to prevent defects like bubbles or surface imperfections. Pellets are dried for 2–4 hours at 80–110°C, achieving a moisture content below 0.02%.
2. Feeding: The dried pellets are fed into a reciprocating screw injection molding machine, where they are melted at a controlled TPU injection molding temperature of 180–220°C to ensure optimal flow without thermal degradation.
3. Injecting:The molten TPU is injected into a mold cavity under pressures of 200–600 psi. Adjusting the mold temperature to ensure proper filling and flow of the TPU and to minimize the risk of defects.
4. Cooling: After injeciton, the mold maintains at 15–50°C, cools the material to solidify the part. The cooling time depends upon the specific TPU grade and the size and complexity of the part.
5. Ejection: After cooling, the mold is opened and the part is ejected from the mold, completing the cycle.
Specialized techniques enhance the versatility of TPU injection molding:
- Insert Molding: TPU is injected around pre-placed metal or plastic inserts, preheated to 200–230°C for 1.5–2 minutes to improve adhesion. Adhesives may be applied to enhance bonding, critical for parts like tool grips.
- Overmolding: TPU is molded over rigid substrates (e.g., ABS, PC), requiring high injection speeds to ensure strong bonds. Surface cleanliness and substrate compatibility are vital to prevent delamination.
TPU Mold Design Considerations
Effective mold design is pivotal for TPU injection molding to ensure defect-free parts and efficient production. TPU’s unique properties, such as tackiness and sensitivity to temperature and pressure, demand specific considerations:
- Draft Angles: Incorporate 3–5° draft angles to facilitate part ejection, countering TPU’s tendency to stick to mold surfaces. For textured surfaces, add 1.5° per 0.025 mm of texture depth to ensure smooth release without compromising part integrity.
- Venting: Implement vents 0.001–0.002 inches deep to release trapped air, preventing voids, burn marks, or incomplete fills due to TPU’s sensitivity to pressure buildup. Strategic vent placement near complex features enhances flow.
- Gate Design and Location: Use large gates (1–2 mm diameter) positioned at the thickest part of the part to minimize pressure loss and ensure uniform filling. Edge or fan gates are ideal for flat parts, while pinpoint gates suit smaller components, reducing gate marks. Gates should align with the mold’s draw direction to avoid shear stress.
- Surface Finish: Opt for polished surfaces to reduce sticking, but avoid over-polishing, which can exacerbate adhesion. Textured surfaces can aid demolding and eliminate the need for release agents, maintaining part aesthetics. Surface roughness should be 25–35 mm for optimal release.
- Temperature Control: Regulate mold temperatures at 15–50°C to ensure consistent cooling and prevent warpage or shrinkage. TPU’s thermal sensitivity requires precise control to avoid uneven crystallization, particularly for high-hardness grades. Conformal cooling channels can enhance efficiency.
- Mold Material and Construction: Use wear-resistant materials like chromium-plated steel or copper-aluminum alloy liners for screws to withstand TPU’s abrasive nature. Ensure tight mold tolerances for overmolding to prevent flash, especially with complex inserts.
TPU Injection Parts Design Guide
Designing parts for TPU injection molding demands precision to ensure manufacturability, performance, and durability, leveraging TPU’s flexibility while mitigating its challenges. Key guidelines include:
- Wall Thickness: Maintain uniform wall thickness of 0.8–3 mm to prevent sink marks, warpage, or uneven cooling. For softer TPU grades, target 1–2 mm to balance flexibility and strength; for harder grades, 2–3 mm supports rigidity. Gradual transitions between thick and thin sections minimize shear stress and improve flow in TPU molding.
- Shrinkage Compensation: Account for TPU’s shrinkage rate of 0.5–3%, which varies by grade. Design molds with precise shrinkage allowances, typically 1–2% for most grades, to achieve tight tolerances.
- Overmolding and Insert Molding Compatibility: Select substrates (e.g., ABS, PC, PA) with melting points at least 30°C higher than TPU’s to prevent deformation during thermoplastic polyurethane injection molding. Incorporate mechanical interlocks, such as undercuts, grooves, or holes, to enhance bonding strength. Surface preparation (degreasing, plasma treatment) is critical to avoid delamination in overmolding.
- Corner Radii: Use generous radii to reduce stress concentrations and improve material flow. Sharp corners increase the risk of tearing under flexing, particularly in dynamic applications like seals or hinges in TPU injection.
- Ribs and Structural Features: Design ribs with a thickness of 50–60% of the nominal wall to add strength without causing sink marks. Maintain rib spacing at least twice the wall thickness to ensure proper filling and avoid voids. For high-flex parts, limit rib height to 2–3 times wall thickness to preserve elasticity.
- Flow Length and Part Geometry: Keep flow length-to-thickness ratios below 150:1 to ensure complete mold filling, as TPU’s viscosity can limit flow in thin or long parts. Avoid abrupt geometry changes to minimize shear thinning and internal stresses during TPU molding.
Challenges and Solutions in TPU Injection Molding
TPU injection molding presents challenges due to its unique properties, but targeted solutions ensure quality outcomes.
Sticking:TPU’s tackiness causes adhesion to mold surfaces. Apply mold release agents, use cooler molds, and incorporate generous draft angles. Polished mold surfaces reduce sticking in TPU molding.
Shrinkage: Inconsistent cooling leads to 0.5–3% dimensional changes, especially in softer grades. Design molds to account for shrinkage, ensure uniform cooling, and anneal parts to relieve internal stresses.
Bubbles/Surface Defects: Moisture absorption in TPU pellets. Dry pellets thoroughly . Optimize injection speed to avoid shear heating at TPU injection molding temperature.
Processing Parameters:
- Melt temperature: 180–220°C to ensure flow without degradation.
- Mold temperature: 15–50°C for optimal cooling.
- Screw speed: 20–80 rpm (preferably 20–40) to minimize shear.
- Injection pressure: 200–600 psi for efficient filling.
Recycling: Up to 30% regrind can be used without significant property loss. 100% recycled TPU retains most properties if uncontaminated, supporting sustainability in TPU injection molding process.
Selecting a TPU Injection Molding Manufacturer
TPU injection molding transforms manufacturing with its ability to produce flexible, durable parts for automotive, medical, and consumer applications. Jiangzhi provides TPU injection molding services, including TPU overmolding and TPU insert molding, delivering high-quality solutions tailored to complex requirements. As a trusted partner with deep expertise in TPU molding, we ensure precision, performance, and consistency.
In addition to TPU, we also offer TPE injection molding for projects requiring different levels of softness or elasticity, giving customers more flexibility in material selection. Partner with Jiangzhi for reliable and versatile injection molding solutions that bring your vision to life.
