Water-assisted injection molding is an established process used in plastic part production to create hollow or partially hollow components with uniform wall thickness. The technology helps reduce part weight and cycle times while maintaining structural performance.
What Is Water-Assisted Injection Molding?
Water-assisted injection molding is a specialized form of injection molding in which high-pressure water is injected into a molten plastic part during the molding cycle. The water forms hollow channels inside the part, allowing the material to flow more evenly and reducing stress and warpage. Unlike traditional injection molding, WAIM enables the production of parts with uniform wall thickness, reduced material usage, and enhanced structural integrity. The process is particularly suitable for complex components where weight reduction, mechanical stability, and precision are critical.

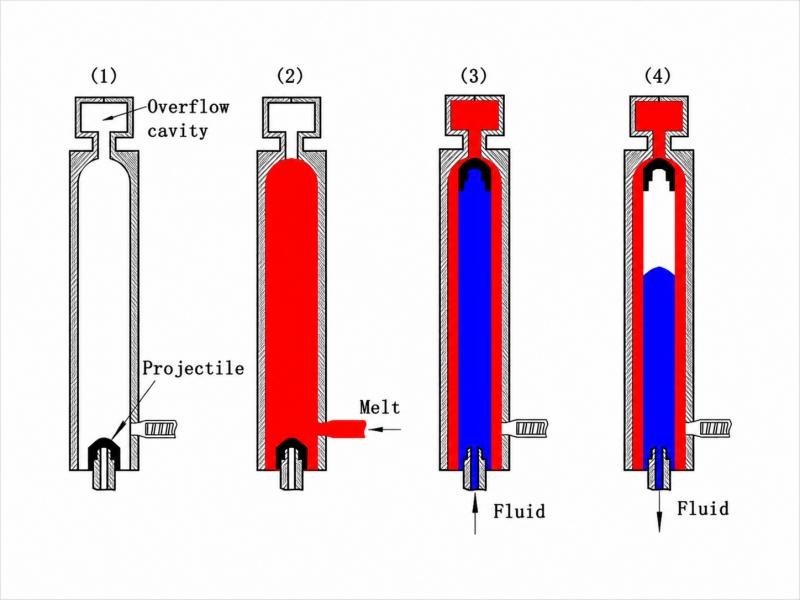

Water-Assisted Injection Molding Process
The water-assisted injection molding process generally follows these steps:
- Melt Injection: Molten plastic is injected into a mold cavity, partially filling the mold.
- Water injection: High-pressure water enters through dedicated channels or nozzles, displacing the melt and forming the hollow core while pressing the material against the mold walls.
- Holding and cooling: Water pressure is maintained while the part cools. The water removes heat from the interior, shortening the overall cooling phase.
- Water drainage: Pressure is released, and the water is drained, often assisted by compressed air or gravity.
- Part ejection: The mold opens,s and the finished part is removed.
Water-Assisted Process Characteristics
The water-assisted process offers several technical characteristics that distinguish it from conventional methods. It produces more uniform wall thickness across the part because the water distributes pressure evenly. Internal surfaces remain smooth due to the direct contact between the water and the cooling melt. Cooling times can be reduced significantly for thick sections, as water conducts heat more effectively than air or gas.
The process also lowers the risk of sink marks and warpage by minimizing internal pressure gradients during cooling. These characteristics make it practical for parts with varying wall thicknesses or long flow paths.
Materials for Water-Assisted Injection Molding
Water-assisted injection molding is compatible with a variety of thermoplastic materials. The choice of material depends on the part’s mechanical requirements, flow characteristics, and end-use conditions. Common materials include:
- ABS (Acrylonitrile Butadiene Styrene): Offers good impact resistance and dimensional stability.
- PP (Polypropylene): Provides chemical resistance and excellent flow properties.
- PC (Polycarbonate): Known for high strength, impact resistance, and thermal stability.
- PA (Polyamide/Nylon): Suitable for mechanical components requiring high toughness.
We work with clients to select and test materials based on end-use requirements such as chemical resistance, dimensional stability, or regulatory compliance. Our material recommendations consider both performance in the water-assisted injection molding process and final part specifications.
Advantages of Water-Assisted Injection
Water-assisted injection molding provides measurable benefits in production efficiency and part quality.
The process reduces material consumption by creating hollow sections, which directly lowers part weight. For components with thick walls, cycle times decrease because internal cooling occurs faster, sometimes by 30–70 % compared with solid molding.
Uniform wall thickness improves dimensional accuracy and reduces the occurrence of sink marks and warpage. Internal surfaces achieve a smoother finish without additional post-processing in many cases. The use of water instead of gas also contributes to lower operating costs over time, as water is readily available and requires simpler handling systems in most setups.
From a manufacturing standpoint, these advantages support higher output rates and reduced scrap.
Applications and Development Trends of Water-Assisted Injection Molding
Water-assisted injection molding is widely used in multiple industries:
- Automotive: Steering wheels, armrests, interior panels, and other components requiring weight reduction and dimensional stability.
- Household Appliances: Housing for appliances such as vacuum cleaners, coffee machines, and air purifiers.
- Sports Equipment: Lightweight and strong parts for fitness devices and protective gear.
Development prospects remain steady as industries continue to focus on lightweighting and material efficiency. Simulation tools help optimize process parameters and mold design. Research continues on short glass fiber reinforced thermoplastics to create lighter and stronger parts. Hybrid technologies that combine water-assisted and gas-assisted methods are being developed for more complex geometries. Process improvements aim to enhance control over short-shot injection and support multi-branched tubular structures. These advancements contribute to better material efficiency and reduced cycle times.

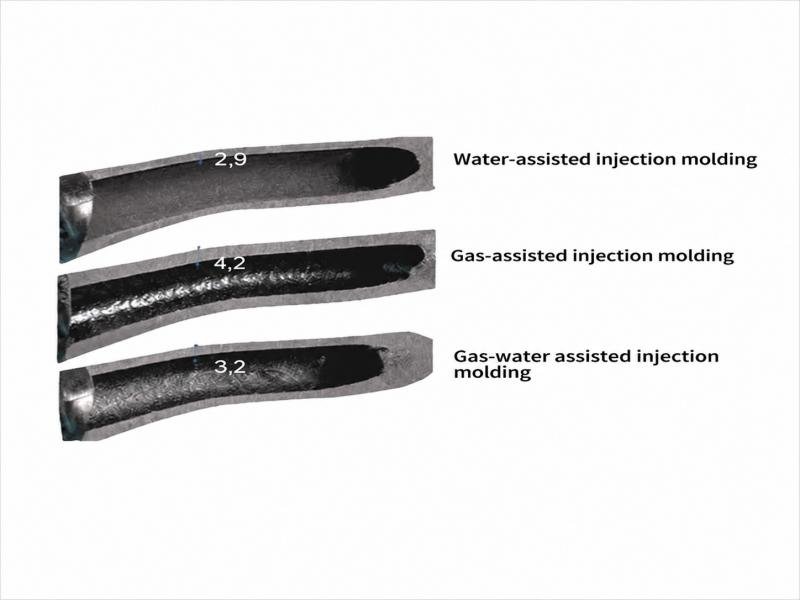

Comparison of Water-Assisted and Gas-Assisted Molding
Water-assisted and gas-assisted injection molding both produce hollow parts but differ in medium properties and outcomes.
Water-assisted injection molding achieves faster cooling and more uniform wall thickness due to water’s higher heat capacity and incompressibility. Internal surfaces are generally smoother with water assistance.
Gas-assisted molding remains a mature option for certain thin-walled or flat parts and requires less complex drainage management. The choice between the two depends on part geometry, material, and production volume. We provide technical guidance to clients on the most suitable method after reviewing their drawings and performance targets.
Conclusion
Water-assisted injection molding is a precise and efficient method for producing lightweight, high-quality hollow parts. By leveraging the WAIM process, achieve material savings, reduce warpage, and maintain structural integrity for complex components. Jiangzhi provides custom water-assisted injection molding services, supporting a range of industries with tailored solutions. Whether you require prototype development or high-volume production, our expertise in WAIM ensures high-quality results optimized for your specific application needs.
