In injection molding, the mold structure plays a critical role in determining product quality, production efficiency, and overall manufacturing cost. Among the most widely used configurations are the 2 plate mold and the 3 plate mold. While both are used for producing plastic parts through injection molding, they differ significantly in structure, gating system, runner design, and overall production performance.
Selecting the right mold type is essential for balancing cost, efficiency, and part quality in injection molding. A structured comparison helps evaluate both options more clearly and supports more informed decisions.
What Is a 2 Plate Mold?

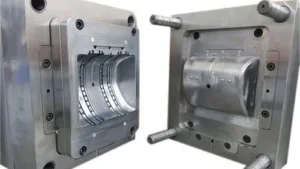

A 2 plate mold is the simplest and most commonly used injection mold structure. It consists of two main parts: the fixed (cavity) plate and the moving (core) plate. The mold opens along a single parting line, and both the molded part and runner system are ejected together.
During injection molding, molten plastic is injected through the sprue and flows directly into the cavity via the runner system. After cooling, the mold opens along the single parting line, and the part, along with the attached runner, is ejected at the same time. Secondary trimming is usually required to remove excess runner material.
What Is a 3 Plate Mold?

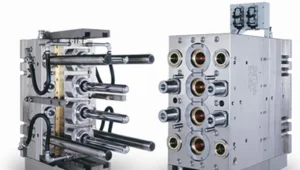

A 3 plate mold adds an additional plate between the fixed and moving halves, creating a separate runner plate. This design allows the runner system to be automatically separated from the molded parts during mold opening.
In a 3 plate mold, molten plastic flows through a sprue into the runner system located in a separate plate. When the mold opens, it separates into three sections: the cavity plate, the runner plate, and the core plate. This enables automatic detachment of the runner system from the molded parts, reducing post-processing work.
Structural Differences Between 2 Plate and 3 Plate Mold
Parting Lines
- 2 Plate Mold:
Has a single parting line where both the part and runner are separated together.
- 3 Plate Mold:
Has two parting lines, allowing the runner system to separate independently from the molded part.
Gate design
- 2 Plate Mold:
The 2 plate mold uses gates located on the parting line or at the part edge, such as edge gates, side gates, fan gates, and submarine gates. This limits gate positioning and often results in more visible gate marks.
- 3 Plate Mold:
The 3 plate mold allows pin-point or direct gates to be placed on different areas of the part surface, not limited to the edge, enabling more flexible gate positioning and leaving gate marks that are not easily seen.
Runner System
- 2 Plate Mold:
The runner remains attached to the molded part in a 2 plate mold and is ejected together, which may require manual or secondary trimming.
- 3 Plate Mold:
In a 3 plate mold, the runner is separated during mold opening through an additional plate structure, requiring no extra operation.
Key Selection Factors & Application Scenarios
Cost Analysis
The 2 plate mold is generally more cost-effective because of its simpler structure and lower tooling complexity. In contrast, the 3 plate mold requires a higher initial investment due to its additional components and more complex design.
Maintenance Considerations
The 2 plate mold generally requires less maintenance, as it has fewer moving parts and a simpler structure. Routine inspection and cleaning are usually sufficient, and maintenance operations are relatively quick.
The 3 plate mold requires more maintenance effort due to its additional moving interfaces. It may involve more frequent checks and longer downtime during maintenance activities.
Cycle Time
A 2 plate mold usually delivers a shorter cycle time since its opening and ejection process is more direct. The 3 plate mold tends to take slightly longer because of the extra step needed to separate the runner system.
Automation Level
The 2 plate molds may involve manual runner removal, which increases labor in some cases. On the other hand, the 3 plate mold supports a higher level of automation thanks to its automatic runner separation system, making it more suitable for automated production.
Material Compatibility and Efficiency
The 2 plate mold is suitable for most general-purpose thermoplastics, but it may result in more material waste due to the runner remaining attached to the part.
The 3 plate mold is better for engineering plastics requiring more precise flow control, and it improves material efficiency by separating the runner during mold opening.
Surface Finish Requirements
Parts produced with a 2 plate mold may show more visible gate marks, depending on the gate design. The 3 plate mold generally offers improved cosmetic quality with smaller and less noticeable gate marks.
Production Volume
When it comes to low to medium production needs, the 2 plate mold is often the more practical choice. The 3 plate mold is more suitable for higher production volumes, especially in multi-cavity mold designs.
Application Scenarios
The 2 plate mold is commonly used for structural and industrial components where appearance is not critical, such as automotive brackets, simple enclosures, and basic functional plastic parts. The 3 plate mold is more often applied in precision products, electronic housings, and parts with higher surface quality requirements, such as mobile device housings, medical device components, and consumer electronics parts.
The table below provides a brief comparison between 2 plate mold and 3 plate mold.
| Aspect | 2 Plate Mold | 3 Plate Mold |
|---|---|---|
| Parting Line | Single line | Two lines |
| Gate Design | Edge and side gates, limited, visible marks | Pin-point gates, flexible, less visible marks |
| Runner | Attached, needs trimming | Automatically separated |
| Cost | Lower | Higher |
| Maintenance | Simple | More complex |
| Cycle Time | Shorter | Longer |
| Automation | More manual | Higher automation |
| Material Efficiency | More waste | Less waste |
| Surface Finish | More visible marks | Better appearance |
| Production Volume | Low–medium | Medium–high |
| Applications | Structural parts | Precision & cosmetic parts |
Conclusion
The choice between a 2 plate mold and a 3 plate mold depends on cost, efficiency, and quality requirements. The 2 plate mold is simpler, more cost-effective, and faster, while the 3 plate mold offers greater gating flexibility, higher automation, and better surface quality for more demanding applications.
