In custom injection molding, achieving part quality and dimensional stability requires control over every variable in the melt delivery system. The injection molding nozzle tip—the final thermal and mechanical interface between the injection barrel and the mold—plays a direct role in determining the success of a production run.
What Are Injection Molding Nozzle Tips?

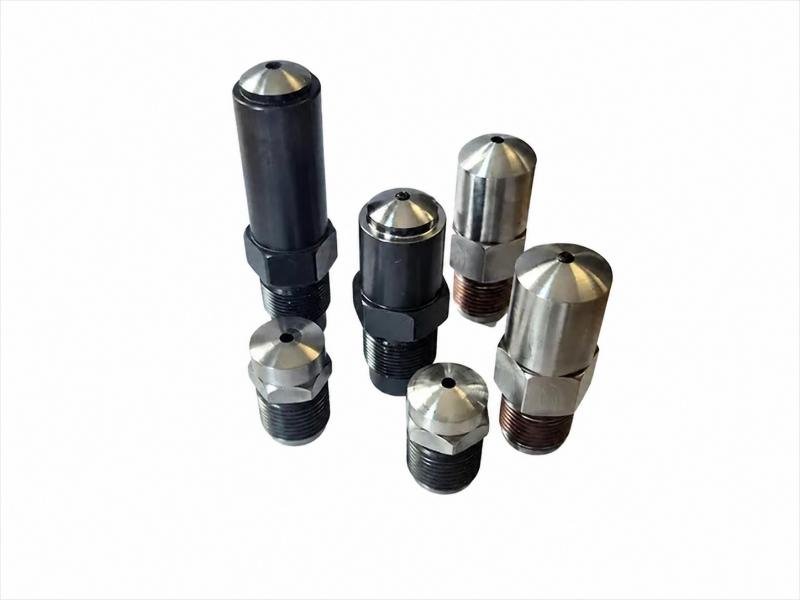

Injection molding nozzle tips are the terminal components of the injection barrel that connect directly to the mold’s sprue bushing. Their primary function is to guide molten plastic from the barrel into the mold cavity system under controlled pressure and temperature conditions.
The basic design includes a body section, a threaded connection, an orifice for material passage, and a radius that seats against the sprue bushing. During operation, the tip must maintain a secure seal with mold components to prevent material leakage while allowing smooth flow.
Nozzle tips operate under high pressure and temperature. Typical melt temperatures range from 180°C to 350°C, depending on the resin. The tip must withstand repeated cycles without degrading or altering the material properties.
Main Types of Injection Molding Nozzle Tips
Different component geometries and resin characteristics demand specific nozzle configurations. Jiangzhi selects the nozzle architecture based on your part’s functional requirements:
Open Nozzle Tips
Open tips, also called fixed or standard tips, feature a straight flow path. Open nozzle tips allow continuous flow of molten material without mechanical shut-off. The flow control is managed by the screw and gate system. These tips are simple to install and maintain, making them suitable for many custom molding setups with stable material flow.
Shut-Off (Valve) Nozzle Tips
Shut-off nozzle tips incorporate a mechanical or hydraulic pin mechanism that blocks flow when injection is not active. Common subtypes use spring, pneumatic, or hydraulic actuation. We deploy shut-off designs when molding low-viscosity resins to eliminate drooling and stringing, directly protecting the aesthetic surface of your parts.
Anti-Drooling Designs
Anti-drooling nozzle tips are optimized to minimize material leakage at the nozzle exit during decompression or idle phases. This is often achieved through geometric adjustments or control of internal flow resistance. These designs are particularly useful for materials with low viscosity or high melt flow index.
Custom Geometry Nozzle Tips
In many industrial applications, standard nozzle geometries are not sufficient. Custom injection molding nozzle tips are designed based on specific mold structures, resin types, and processing conditions. Customization may involve adjustments to taper angle, orifice size, contact surface design, or thermal distribution characteristics.
How to Choose the Material for Nozzle Tips?
The abrasive and thermal properties of engineering resins can rapidly degrade nozzle components, leading to dimensional drift in your molded parts. To prevent this, nozzle tip materials are selected based on the specific requirements of your project:
| Nozzle Tip Material | Key Performance Characteristic | Ideal Project Application |
|---|---|---|
| Tool Steel | Balanced durability and cost-effectiveness | Standard, non-filled consumer electronics and industrial parts |
| Hardened Alloys (e.g., CPM) | Superior abrasion and erosion resistance | Highly abrasive, glass-fiber reinforced materials common in automotive components |
| Beryllium Copper | High thermal conductivity; eliminates premature freeze-off | Micro-molding or thin-walled electronics requiring precise thermal control |
By utilizing advanced wear-resistant coatings for extended production runs, we mitigate mechanical erosion, ensuring that the first shot and the 100,000th shot maintain identical tolerances.
Key Sizing and Matching Principles
A mismatch at the nozzle-to-mold interface is a primary cause of pressure loss and flashing. During the Design for Manufacturability (DFM) and setup phases, engineering teams must cross-check two critical interfaces:
The Radius Match (½ inch or ¾ inch): The nozzle tip radius must strictly match or be slightly smaller than the sprue bushing radius. This creates a secure line seal under high clamp tonnage, preventing material leakage and pressure drops that cause short shots.
The Orifice Differential: The nozzle orifice diameter is engineered to be slightly smaller than the sprue entrance (typically by 0.5 mm to 1.0 mm). This offset prevents material freeze-off, controls shear heating, and facilitates clean sprue separation during automated ejection cycles.
Common Failure Modes and Engineering Solutions
Injection molding nozzle tips are exposed to continuous thermal cycling and mechanical stress, which can lead to several common failure modes.
Leakage at the Nozzle Interface
Leaks often result from radius mismatch, insufficient contact pressure, or damaged seating surfaces. Solutions include verifying alignment, applying correct torque to the tip, and replacing worn components. Regular inspection prevents escalation.
Material Drooling
Drooling is caused by insufficient shut-off control or improper pressure balance during decompression. This issue is common in open nozzle systems and can be mitigated through improved thermal control or shut-off design integration.
Flow Blockage
Blockage is often the result of degraded polymer buildup or contamination. It can disrupt flow consistency and increase cycle time variability. Regular inspection and optimized flow channel design help reduce this risk.
Wear and Erosion
Abrasive-filled materials, such as glass fiber-reinforced resins, can gradually erode nozzle surfaces. Over time, this leads to dimensional changes and reduced sealing performance. Wear-resistant materials or surface coatings are commonly used to address this issue.
Maintenance Considerations for Nozzle Tips
Maintenance of injection molding nozzle tips focuses on preventing performance degradation rather than reactive repair. Regular inspection of sealing surfaces is necessary to detect early signs of wear or deformation.
Material residue buildup, particularly carbonized polymer deposits, should be removed during scheduled cleaning cycles. These deposits can affect flow stability and increase the risk of blockage.
In high-volume production environments, nozzle tips are often replaced based on predefined service intervals rather than waiting for functional failure.
A simple maintenance checklist:
- Inspect tip condition daily.
- Verify seating and torque.
- Purge before material changes.
- Record any adjustments or replacements.
- Schedule full disassembly and cleaning at defined intervals.
Conclusion
Injection molding nozzle tips are a small but essential factor in achieving consistent quality in custom molded parts. Understanding their types, materials, sizing, common issues, and maintenance practices helps reduce defects and improve production efficiency. Jiangzhi provides professional injection molding services. Welcome to contact Jiangzhi and get a custom injetion molding solution. From initial DFM alignment to rigorous thermal and mechanical control on the production floor, we ensure your engineering specifications are met with absolute consistency.
