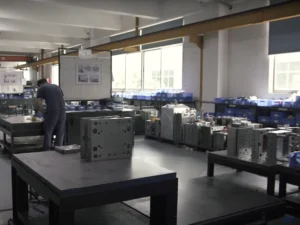

Mold assembly is the final stage of injection mold manufacturing, where precision-machined components are fitted, aligned, adjusted, and tested to ensure the mold can operate reliably during production.
What Is Mold Assembly?
Mold assembly is the process of combining individual mold components into a complete functional mold system according to the design requirements. It includes component installation, precision fitting, alignment adjustment, movement testing, and final verification.
A proper injection mould assembly process involves more than simply installing mould components. It requires accurate fitting between the core and cavity, smooth movement of mechanical systems, correct alignment of guiding components, and thorough inspection before the mold enters trial production. The quality of mould assembly directly affects part appearance, dimensional consistency, production efficiency, and mould service life.
The Role of Mold Assembly in the Manufacturing Process
Mold assembly takes place after machining, surface treatment, and component inspection. It connects the individual manufacturing processes into a complete tooling system.
A typical injection mold manufacturing process includes:
Design → Material preparation → CNC machining → Heat treatment → Precision finishing → Mold assembly → Mold trial → Production
At the assembly stage, manufacturers verify whether the machining accuracy meets the design requirements. Any minor issues, such as improper fitting, interference, or alignment problems, can be identified and corrected before the mold is used for mass production.
Main Components Assembled in Injection Mold
A complete injection mold consists of multiple components that perform different functions. During assembly, each component must be positioned correctly to ensure stable operation.
| Component | Function |
|---|---|
| Mold base | Provides structural support for all mold components |
| Core and cavity | Forms the shape and details of the molded part |
| Guide system | Maintains accurate alignment between mold halves |
| Ejection system | Removes molded parts from the cavity |
| Slides and lifters | Create undercuts and complex part features |
| Inserts | Provide special functions or replaceable sections |
| Cooling system | Controls mold temperature during production |
Injection Mold Assembly Process
A professional assembly mold process follows a structured workflow to ensure every component is installed and tested correctly. The following steps represent a typical mould assembly procedure used by injection molding manufacturers.
Step 1: Component Inspection Before Assembly
Before starting mold assembly, all machined components are inspected to confirm they meet the required specifications.
The inspection usually includes:
- Component dimensions
- Surface finish condition
- Machining accuracy
- Burr removal
- Cleanliness
Any contamination, machining defects, or dimensional issues must be addressed before assembly. Clean and accurate components help reduce adjustment time and prevent problems during mold operation.
Step 2: Mold Base Assembly
The mold base provides the foundation for the complete tooling structure. During this stage, mold plates, guide components, support plates, and related structural parts are installed.
Checklist:
- Plate alignment
- Guide pin and bushing movement
- Mold opening and closing action
- Position accuracy between mold halves
A properly assembled mold base ensures that the core, cavity, and other mechanisms maintain stable positioning throughout the molding cycle.
Step 3: Core and Cavity Fitting
Core and cavity fitting is one of the most important steps in injection mould assembly. These components directly determine the final geometry and surface quality of molded parts.
During fitting, technicians focus on:
- Parting surface matching
- Sealing surface contact
- Alignment accuracy
- Proper clearance
Poor fitting between the core and cavity may lead to common molding issues such as flash, parting line mismatch, and unstable production performance.
Step 4: Ejection System Assembly
The ejection system is responsible for removing the molded part after it has cooled. It normally includes ejector pins, ejector plates, return pins, and related components.
During assembly, manufacturers check:
- Smooth ejector movement
- Correct positioning
- No mechanical interference
- Proper return function
A well-adjusted ejection system helps prevent part deformation, surface damage, and production interruptions.
Step 5: Slide and Lifter Assembly
Slides and lifters are used when molded parts contain undercuts or complex geometries that cannot be released through normal ejection.
During this stage, technicians verify:
- Movement clearance
- Wear plate fitting
- Slide positioning
- Lifter operation
Incorrect adjustment may cause sticking, excessive wear, or difficulty during mold opening and closing.
Step 6: Cooling System Installation
The cooling system is installed after the main mold structures and mechanical components are assembled.
This process includes:
- Installing cooling fittings
- Connecting water channels
- Checking leakage
- Confirming water flow
A properly assembled cooling system helps maintain stable mold temperatures, improve cycle consistency, and reduce dimensional variation in molded parts.
Manual Fitting in Injection Mold Assembly
Although modern machining equipment can achieve high precision, manual fitting remains an important part of mould assembly for many high-precision injection moulds.
Parting Surface Fitting
Parting surface fitting focuses on ensuring that the core and cavity close together evenly. Proper fitting reduces the risk of flash and helps maintain consistent part dimensions. The fitting quality of the parting surface is especially important for molds with complex geometries or tight sealing requirements.
Slide and Lifter Adjustment
Slides and lifters require accurate adjustment because they contain moving mechanisms. Technicians check the clearance between moving components to ensure:
- Smooth operation
- Proper positioning
- Reduced friction
- Stable long-term performance
Incorrect fitting may result in mechanical interference or premature wear.
Red Lead Inspection
Red lead inspection is a traditional fitting check method used to evaluate contact conditions between mating surfaces. It provides a quick way to identify uneven contact areas and helps technicians make necessary adjustments during the final fitting stage.
Injection Mold Assembly Quality Inspection
After completing the assembly process, there are multiple inspections to verify that the mold meets production requirements.
Dimensional Inspection
Dimensional inspection confirms that assembled components maintain the required accuracy.
Common inspection equipment includes:
- Coordinate Measuring Machine (CMM)
- Micrometer
- Caliper
Critical dimensions, alignment positions, and component relationships are verified against the mold design requirements.
Motion Testing
Before mold trials, the complete mold structure is tested for mechanical operation to confirm that all mechanisms operate smoothly before production testing.
The inspection includes:
- Mold opening and closing movement
- Ejector system operation
- Slide and lifter movement
- Component interference checks
Mold Trial Validation
A mold trial is the final verification step before mass production. Trial results help identify any remaining adjustment requirements and confirm whether the mold can meet production expectations.
During trial molding, manufacturers evaluate:
- Molded part appearance
- Flash conditions
- Short shots
- Ejection performance
- Dimensional consistency
Common Mold Assembly Problems and Their Causes
Poor assembly quality can affect both mold performance and molded part quality. The following table summarizes common problems related to improper mould assembly.
| Problem | Possible Cause |
|---|---|
| Flash | Poor parting surface fitting or incorrect alignment |
| Short mold life | Excessive friction, poor fitting, or misalignment |
| Part scratches | Improper ejector or slide adjustment |
| Difficult demolding | Incorrect ejection system or mechanism fitting |
| Uneven dimensions | Poor mold alignment or unstable assembly accuracy |
A well-controlled mold assembly process helps improve production stability, extend mold lifespan, and maintain consistent part quality. Proper fitting, inspection, and testing during assembly reduce the risk of problems after the mold enters production.
Conclusion
Injection mold assembly is a critical stage that connects precision machining with final production performance. For custom injection molding projects, working with an experienced mold manufacturer can help ensure the tooling is properly assembled and prepared for stable mass production.
FAQs About Mold Assembly
It depends on the mold complexity, number of components, and precision requirements. Simple molds may take a few days, while complex molds with slides, lifters, or tight tolerances may require several weeks.
No. Mold assembly is the process of installing and fitting all mold components. Mold trial is the testing stage after assembly, where the mold is run on an injection machine to check part quality and mold performance.
Yes. If issues are found during mold trials, the mold can usually be adjusted or reworked. Common corrections include improving parting surface fitting, adjusting ejector systems, modifying slides, or correcting alignment problems.
