Silicone rubber is one of the most widely used synthetic elastomers in modern manufacturing. From medical devices to automotive seals, its resistance to heat, weather, and chemicals makes it a preferred material across many industries. This guide covers what silicone rubber is, how it is made, its main types, properties, applications, and the factors that affect its cost and quality.
What Is Silicone Rubber?
Silicone rubber, a common type of rubber, is a synthetic elastomer built on a backbone of silicon and oxygen atoms, with organic groups such as methyl or vinyl. Unlike natural rubber, which is based on carbon chains, this silicon-oxygen structure gives it greater stability across extreme temperatures, making it suitable for both very hot and very cold environments.
How Is Silicone Rubber Made?
Raw Materials
The core ingredient in silicone rubber is silica, derived from sand. It is processed into silicon metal and then combined with methyl chloride to produce methylchlorosilanes. These compounds are hydrolyzed and polymerized to form the base silicone polymer.
The Curing Process
Raw silicone gum is mixed with reinforcing fillers, typically fumed silica, along with curing agents. Heat, catalysts, or moisture trigger vulcanization, a chemical process that cross-links the polymer chains and turns the soft gum into a solid, elastic rubber.
Types of Silicone Rubber
Silicone rubber is classified in two main ways: by the chemical groups attached to its backbone, and by how it is processed.
By chemical composition:
- MQ: Basic methyl silicone, one of the earliest types developed.
- VMQ: Methyl vinyl silicone, the most common grade, offering good compression set and easier vulcanization.
- PVMQ: Methyl phenyl vinyl silicone, formulated for better performance at very low temperatures.
- FVMQ: Fluorosilicone, offering improved resistance to fuel, oil, and solvents.
By processing form:

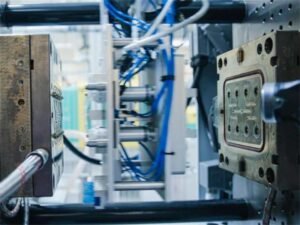

- Liquid Silicone Rubber (LSR): A low viscosity, two-part silicone suited to high-volume injection molding of precision parts with tight tolerances.
- High Temperature Vulcanized (HTV): A solid, gum-like silicone with longer polymer chains, processed through compression or transfer molding and cured at elevated temperatures.
- Room Temperature Vulcanized (RTV): A one- or two-part silicone that cures without added heat, commonly used for sealants, potting, and mold making.
- Food Grade and Medical Grade: Certified formulations tested for food contact safety or biocompatibility.
Advantages of Silicone Rubber
Silicone rubber combines several properties rarely found together in one material:
- Temperature Resistance: Performs well from about minus 60°C to 230°C, with some high-temperature grades tolerating brief exposure up to 300°C.
- Thermal Conductivity: Standard, unfilled silicone rubber sits around 0.15 to 0.3 W/m·K, acting as a good insulator. Adding fillers such as aluminum oxide or boron nitride can raise this to 1 to 5 W/m·K, with specialized thermal interface compounds reaching close to 6 W/m·K.
- Mechanical Strength: Tensile strength typically falls between roughly 1.4 and 10 MPa, with elongation at break reaching up to 700% in some formulations.
- Weather and UV Resistance: Does not degrade quickly under sunlight, ozone, or moisture, unlike many organic rubbers that harden and crack over time.
- Flexibility: Retains elasticity and rebounds well across a wide temperature range.
- Electrical Insulation: High dielectric strength makes it suitable for wiring, connectors, and high-voltage components.
- Biocompatibility and Cleanliness: Non-toxic, hypoallergenic, and able to withstand sterilization methods such as autoclaving, which suits skin contact and medical use.
Disadvantages of Silicone Rubber
Despite its strengths, silicone rubber has some limitations:
- Lower tear, tensile, and abrasion resistance compared to some organic rubbers, making it less suited to high friction or high stress parts.
- Higher material cost than general purpose rubbers such as EPDM or neoprene, driven by its more complex production process.
- Limited resistance to nonpolar solvents, fuels, and concentrated acids, which can cause swelling or a loss of mechanical integrity over time.
- A tendency toward compression set under sustained pressure, meaning it may not fully return to its original shape in long-term sealing applications.
- Weaker natural adhesion to other surfaces, often requiring a primer for reliable bonding in molded or multi-material parts.
Silicone Rubber vs. Rubber: What Is the Difference?
The term “rubber” usually refers to natural or synthetic organic rubbers such as natural rubber, EPDM, or nitrile, all based on carbon and hydrogen chains that gradually break down under heat, pressure, and UV exposure. Silicone rubber is built on a silicon-oxygen backbone instead, which is far more stable and does not require the stabilizing additives that organic rubbers often need. In practice, silicone rubber tends to last several times longer than general organic rubber under similar conditions, though it typically costs roughly twice as much. General rubbers still offer better abrasion resistance at a lower upfront cost, so material choice depends on how long the part needs to last versus the initial budget.
Applications of Silicone Rubber
- Medical Devices: Tubing, seals, implants, and wearable devices.
- Automotive Components: Gaskets, hoses, and engine seals exposed to heat.
- Electronics: Keypads, insulation, and protective coatings.
- Food and Beverage: Bakeware, seals, and food contact components.
- Industrial: O-rings, gaskets, and vibration dampers in demanding environments.
- Construction: Weatherproof sealants and expansion joints.
Conclusion
Silicone rubber stands out for its heat resistance, chemical stability, and long service life across a wide range of industries. Choosing the right type and grade depends on the performance requirements of each application, from temperature range to regulatory compliance. For custom silicone rubber components tailored to specific technical requirements, contact Jiangzhi and get help for your project.
FAQs About Silicone Rubber
Common specifications include hardness, typically 10 to 80 Shore A, tensile strength between roughly 1.4 and 10 MPa, elongation at break between 100% and 700%, and a service temperature range of about minus 60°C to 230°C, with some grades tolerating short exposure up to 300°C.
Yes, for approved grades. Medical grade and food grade silicone rubber have been recognized as safe for cookware and medical use in markets such as the United States and Canada since the late 1970s, and are free from harmful additives such as BPA or phthalates when properly certified. The European Union has flagged certain siloxane compounds used during production, so certification should always be checked against the standards required in the target market.
Silicone rubber is not easily recycled through standard rubber recycling processes because it does not melt like thermoplastics. Specialized methods exist to break it down into raw materials such as silica filler, and some silicone waste can be reused in lower-grade applications.
Most manufacturers follow ISO 9001 for quality management and ISO 14001 for environmental practices. Depending on the application, parts may also need to meet FDA 21 CFR 177.2600 for food contact, USP Class VI or ISO 10993 for medical use, RoHS and REACH for restricted substances in the EU, and, in some cases, UL 94 V-0 flame ratings or WRAS approval for water contact.
Pricing depends on the grade, along with certification requirements, part complexity, tooling costs, and order volume. Larger production runs typically lower the per unit cost.
